Introduction
Maybank2u Pay is an online payment platform that simplifies payment process for your business. With our payment gateway, your customers can make purchases instantly from your website with just the click. Apply now for Maybank2u Pay to utilise a secure online payment system to meet your business needs.
You may contact us at maybank2upay@maybank.com regarding on SDK support. We will response to you on the next business day.
Implementation Flow
SCROLL DOWN FOR SAMPLE CODES
The overall flow of the implementation:
1. Generate encrypt array based on input parameters from backend SDK function. `m2upay_backend.getEncryptionString`
2. Pass the encrypted array to front end SDK function to initiate Maybank2u pop up. `m2upay.initPayment`
3a. Testing environment - Maybank2u Pay pop up status will be shown.
3b. Production environment - Customer login Maybank2u and confirm payment with TAC code.
4. Payee will be responded with status by either one or both method below:
a. Realtime Payment Notification
Download SDK
Download the compatible language SDK for your programming stack:
Backend
Make sure to replace
payeeCode
with your Payee Code provided for selected environment.
<?php
include 'm2upay_phpbackend/M2UPay.php';
use M2U\M2UPay;
//Pass in required parameters
$m2u_json= array(
'amount'=> 100.00,
'accountNumber'=>"A123456", //This “accountNumber” field is for you to pass the purchase ref number / invoice number/ bill number. Maybank will pass the same purchase ref number / invoice number/ bill number back to you (under parameters 'AcctId') to match the transaction status when Maybank send you the Realtime Payment Notification (RPN).
'payeeCode'=>"***"
);
$envType = 0;
$M2UPay = new M2UPay();
$encrypt_json = $M2UPay->getEncryptionString($m2u_json, $envType);
?>
PGParams params = new PGParams();
int envType= 0;
params.setAmount("100.00");
params.setAccountNumber("A123456"); //This “accountNumber” field is for you to pass the purchase ref number / invoice number/ bill number. Maybank will pass the same purchase ref number / invoice number/ bill number back to you (under parameters 'AcctId') to match the transaction status when Maybank send you the Realtime Payment Notification (RPN).
params.setPayeeCode("***");
HashMap encrypt_json = PaymentGateway.getEncryptionString(params, envType);
var m2uPay_backend = require('./m2uPay_backend.js');
var M2U_PAYMENT= {
'payeeCode':"***",
'amount':"100.00",
'accountNumber':"A123456" //This “accountNumber” field is for you to pass the purchase ref number / invoice number/ bill number. Maybank will pass the same purchase ref number / invoice number/ bill number back to you (under parameters 'AcctId') to match the transaction status when Maybank send you the Realtime Payment Notification (RPN).
};
var envType = 0;
var encrypt_json = m2upay_backend.getEncryptionString(M2U_PAYMENT, envType);
If encryption successful, the
encrypt_json
returns JSON structured like this:
{
"encryptedString":"uGJ6%2Bl4prlW5E%2BdLg%2FOaS%2BNAyl0xTJmTiSTUFbeyIUjjErW3eCZ7lSRB3dpQULlUl3YRbfCVHn%2Bem%2FDZowvTds94W%2FZqk7Y1a1K7FOZaEG9g9zuqxEucb1ixT7qW5awAeojMCujqWsi1d39D61hLaiBgJu14cEtwYut4Gk76Dfd83kf9zDIiDPPvF4ps6O08SU8Trl4mr5YihOAFQjuv9w%3D%3D",
"actionUrl":"https://..."
}
Payee need to included ‘m2uPay_backend’ module
Payee must make a call to getEncryptionString method by passing the following parameters to get:
encryptedString
actionUrl
- The encrypted string and form action URL are generated to pass to the frontend SDK.
- The following parameters to be pass in the getEncryptionString function:
Parameters | Type | Length | Required | Description |
---|---|---|---|---|
amount | Decimal | 9 | Mandatory | This is the amount field. Sample for RM100.00: 100.00 |
accountNumber | Alphanumeric | 30 | Mandatory | What Is This Field For?
This “accountNumber” field is for you to pass the purchase ref number / invoice number/ bill number. Maybank will pass the same purchase ref number / invoice number/ bill number back to you (under parameters 'AcctId') to match the transaction status when Maybank send you the Realtime Payment Notification (RPN). How Do I Use This Field? You can use this 'accountNumber' field to match with the 'AcctId' field (sent to you via Payment Notification) to retrieve the transaction status. Sample: A12345 |
payeeCode | Numeric | 3 | Mandatory | The payee code is assign by Maybank to the Merchant. |
- Please specify the right envType for the right environment.
Parameters | Type | Length | Required | Description |
---|---|---|---|---|
envType | Numeric | 1 | Mandatory | Please specify the right envType for the right environment. Sample : 0 - playground environment 1 - User Acceptance Test(UAT) environment 2 - Production / Live environment |
Frontend
<div id="m2upay" ></div>
<script type="text/javascript" src="m2upay_frontend.js"></script>
<script>
//TO BE PASS FROM getEncryptionString function.
var encrypt_json = <?php echo $encrypt_json; ?>
m2upay.initPayment(encrypt_json.encryptedString,encrypt_json.actionUrl, 'OT');
</script>
Include m2upay_frontend.js to payment HTML page.
Add the following code to your payment page to allow m2upay_frontend.js to render payment form:
<div id="m2upay" ></div>
Developer need to pass following parameters to “m2upay.initPayment” function to initiate a payment.
Then, a popup will appear. Repeat step 2 from Backend Implementation if there is error in pop up page.
Payment Notification
Realtime Payment Notification
1. Payee will receive server to server notification in realtime after payment has been made or failed.
2. The realtime notification will be a HTTP POST from Maybank server to the Response URL that you have specified in the Technical Requirement after your Maybank2uPay application has approved.
Payee will receive payment notification from Maybank in JSON format with the parameters shown below:
Sample notification received by payee:
//For sample usage only, please refer to Realtime Payment Notification table for correct parameter's value to be received:
{
"Msg":{
"PmtType":"CashPayment",
"RefId":"M2U112211255",
"TrnDateTime":"20161109105609",
"AcctId":"A123456", //This 'AcctId' field is for you to match back the purchase ref number / invoice number/ bill number that has been passed to us.
"Amt":"10000",
"StatusCode":"00",
"StatusDesc":"Successful"
}
}
Parameters | Type | Length | Description |
---|---|---|---|
AcctId | Alphanumeric | - | We will send you the 'AcctId' field for you to match the purchase ref number / invoice number/ bill number which you have passed to getEncryptionString function earlier under field 'accountNumber'.
Sample: A123456 |
Amt | Numeric | - | Amount of money paid in cent. Sample for RM100.00: 10000 |
PmtType | Alpha | - | Type of Payment. Sample: CashPayment or CCardPayment |
RefId | Alphanumeric | - | A uniquely generated transaction ID from the bank for this payment. Sample: M2UT3695990209302989 |
StatusCode | Numeric | 2 | Status of the transaction in code. Sample: 00 = successful, 01 = unsuccessful |
StatusDesc | Alpha | - | Status of the transaction in alphabet. |
TrnDateTime | Numeric | - | The date and time when the transaction takes place. Time date of 9th November,2016 at 10.56am and 9 seconds will be shown in YYYYMMDDhhmmss format. Sample: 20161109105609 |
After receiving the notification, payee needs to return response in the following JSON format with the 2 parameters(RefId & PmtType) received in the notification.
After receiving the notification, payee needs to return response in the following JSON format with the 2 parameters(RefId & PmtType) received in the notification:
//For sample usage only, please refer to Realtime Payment Notification table for correct parameter's value
{
"Msg": {
"PmtType": "CashPayment", //This should be the same as the value you received from the notification
"RefId": "M2U112211255", //This should be the same as the value you received from the notification
"StatusCode": "0"
}
}
Parameter receive from payee during notification response as follows in JSON format(check right panel for sample response)
Field Name | Description |
---|---|
RefId | A uniquely generated transaction ID from the bank for this payment. **(This should be the same as the value you received from the notification)** Sample: M2UT3695990209302989 |
PmtType | Type of Payment. **(This should be the same as the value you received from the notification)** Sample: CashPayment or CCardPayment |
StatusCode | The various return code from payee’s server. Sample: See next table |

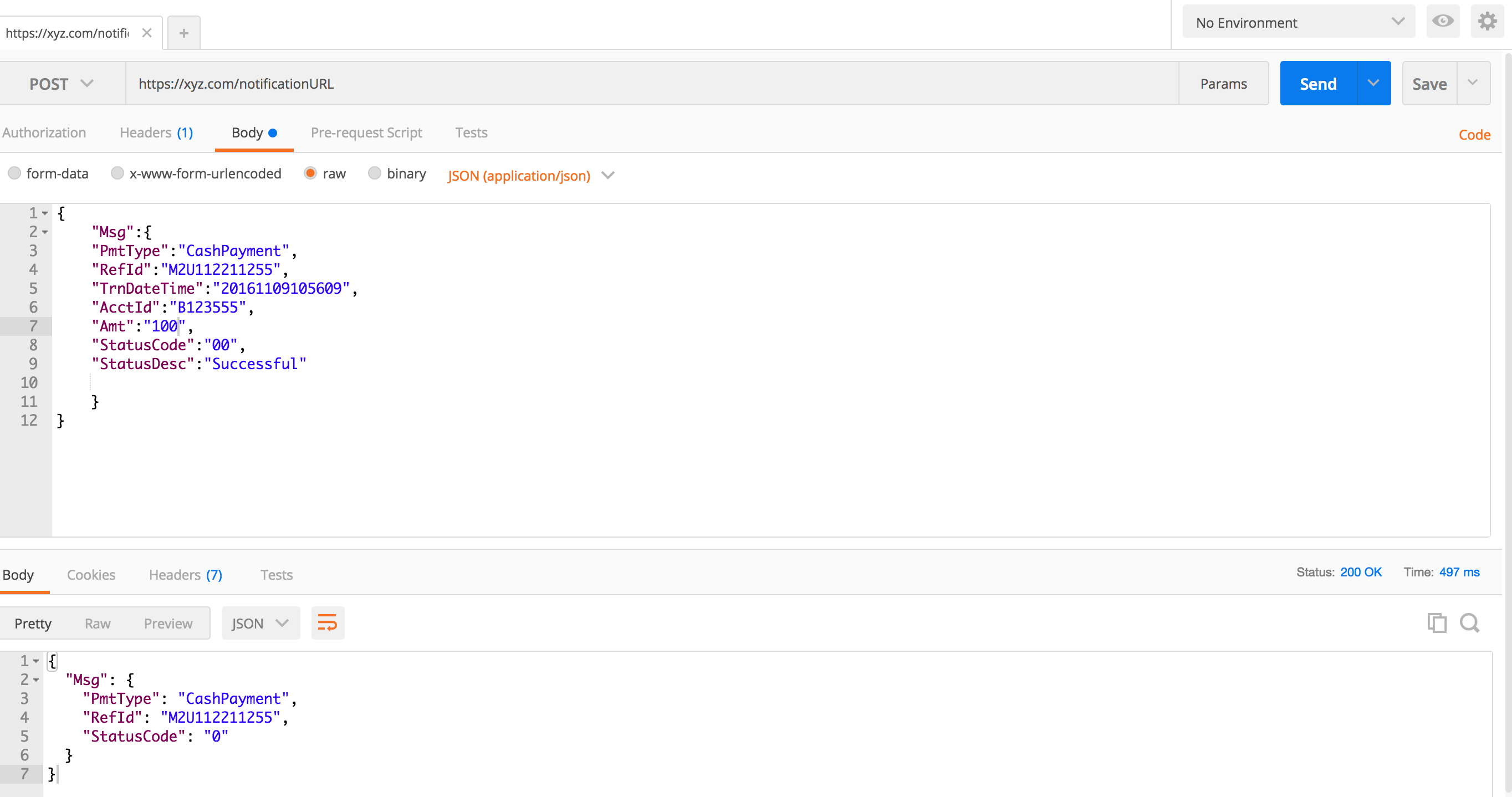

POSTMAN client screenshot of Maybank sending notification to Payee through HTTP POST method.
Status code expected to receive from payee as follow:
Status Code | Description | Error Reason |
---|---|---|
-1 | Internal error | Error at payee. Request to resend |
0 | OK | Successful |
101 | Unsuccessful | Transaction rejected by merchant |
104 | Duplicate transaction | Merchant has been notified |
